Templates

A Template is a content variant of one Layout. The Layout defines the structure and look of the document; the Template supplies the texts that differ between use cases. Business users edit Templates through a form, so they never touch HTML or JSON.

Typical examples:

• one email Layout with the company header and footer, and Templates such as Ticket created, Ticket resolved and Satisfaction survey,
• one contract Layout, and Templates for different products or languages.

Open Templates from Output management → Templates.

Properties

Property	Meaning
Code, Name	Identification. Callers generate documents by the Template code.
Layout	The Layout the Template is built on.
Form	Optional form for entering test data in a structured way instead of raw JSON.
Mnemonic code	For PDF Layouts, the mnemonic used to generate the PDF file name.
Labels, Configuration Type	Standard configuration metadata.

The content fields themselves come from the Form of the Layout (Layout → Basic settings → Form). The values a user enters are stored in the Template.

How content and data are combined

When a Template is rendered, its content and the data from the caller are combined into one input for the Layout. The Layout reads a content field by its form key at the top level, next to the caller data: {{headlineName}} from the Template works the same way as {{customer.name}} from the caller. If the caller data contains a key with the same name, the Template value is used.

The test data of a Template therefore contain only the caller data, for example the customer and the order. The content fields are filled in the Content panel.

Editing a Template

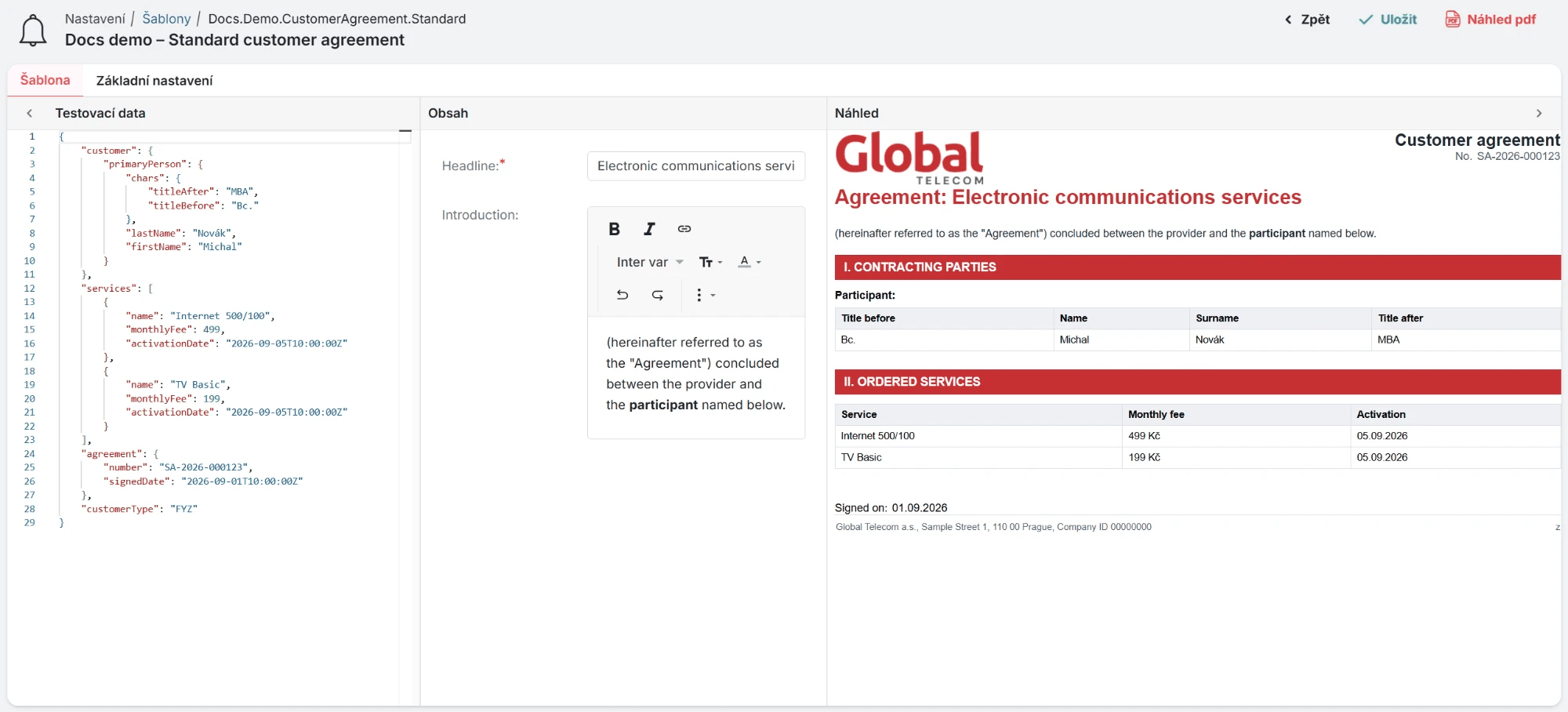

The Template tab has three panels:

Panel	Content
Test data (left)	Sample runtime data for the preview. It is a JSON editor, or the Template's own Form when one is set.
Content (centre)	The form of the Layout. Fill in the texts of this Template here.
Preview (right)	The Layout rendered with the Template content and the test data.

The header offers Save (also Ctrl+S) and Preview pdf. When the Layout is a FILE Layout with a Word or Excel document, Preview word or Preview excel renders the Template into that format.

Designing the content form

The Form assigned to the Layout decides what a business user can change. Design it together with the Layout:

1. List the parts of the document that vary between Templates: subject, headline, body text, closing sentence, optional sections.
2. Create a Form with one field per part. The field keys are the names you use as placeholders in the Layout, for example headline or body.
3. In the Layout, add sample values for these keys to the Test data, so the designer offers them in the pickers, and place them with Handlebars components.
4. Assign the Form to the Layout in Basic settings → Form.

Choose the placeholder by the kind of field:

Form field	Placeholder in the Layout
Plain text	{{headline}}
Rich text that produces HTML	{{{body}}} (triple braces, so the HTML is not escaped)
Markdown text	{{{markdown body}}}
Checkbox for an optional section	{{#if showSurvey}} … {{/if}}

Keep structure in the Layout

If business users start asking for formatting options in the form (colours, font sizes, column layouts), the variation probably belongs in the Layout or in a second Layout. The form should describe content, not design.

Using a Template

Pass the Template code wherever a document is generated:

@formatterPublicService.generate("TicketResolvedEmail", "html", {
    ticket: #ticket,
    customer: #customer
})

• In a Notification Template, select the Template as Output design. See Notification.
• Through the REST API, use the Template code in POST /api/v1/formatter/{documentTemplateCode}/{format}. See Generating output.
