Fluent Forms Effects Engine

Overview

The effects engine lets you define reactive side-effects that automatically respond to form value changes.

Main use cases:

• Automatically clear/set field values when another field changes
• Copy values between fields
• Execute server-side scripts on value changes
• Complex form logic without writing JavaScript

Basic Structure

Effects are defined in the JSON schema at the root level using the effects property:

{
  "type": "object",
  "properties": {
    "checkbox": { "type": "boolean" },
    "text1": { "type": "string" },
    "text2": { "type": "string" }
  },
  "layout": ["checkbox", "text1", "text2"],
  "effects": [
    {
      "id": "my-effect",
      "listen": ["${$value.text1}"],
      "when": "${$value.checkbox == true}",
      "do": [
        { "type": "set", "field": "text2", "value": "${$value.text1}" }
      ]
    }
  ]
}

Effect Object Structure

Property	Required	Type	Description
id	No	string	Identifier for debugging and logging
listen	Yes	string[]	JEXL expressions whose output value is watched — the effect triggers whenever a result of any of these expressions changes (for example, "${$value.text1}")
when	No	string	Condition (JEXL expression). If omitted, effect always executes
do	Yes	EffectAction[]	Array of actions to execute when condition is met

Action Types (EffectAction)

1. CLEAR - Clear/Reset Field Value

Clears a field value. The mode controls what happens after the value is removed. If mode is not specified, empty is used.

Mode empty (default) — Simply wipes the value (sets it to null/[]/{}). The field is marked as "dirty", meaning any schema default will not be applied. Use this when you just want to blank out the field with no further behavior:

{
  "type": "clear",
  "field": "text1",
  "mode": "empty"
}

Mode unset — Removes the value and marks the field as "pristine" (as if the user never touched it). The field is then open to receiving its default value again — but only if the default expression produces a new value in the future (e.g. when another field it depends on changes). Use this when you want to "undo" a user's input and let the form's default logic take over again passively:

{
  "type": "clear",
  "field": "text1",
  "mode": "unset"
}

Mode reset — Same as unset, but also immediately re-applies the schema default right away, without waiting for anything to change. If the field has a default value or default expression defined, it is evaluated and set instantly. Falls back to stored control defaults if no schema default exists. Use this when you want the field to snap back to its default value on the spot:

{
  "type": "clear",
  "field": "text1",
  "mode": "reset"
}

Key difference: unset vs reset

Both modes mark the field as pristine and allow defaults to be applied again. The difference is when:

• unset — waits; the default is applied only if it changes later (reactive)
• reset — acts immediately; the default is applied right now

2. SET - Set Value with Expression

Sets field value using an evaluated expression:

{
  "type": "set",
  "field": "text2",
  "value": "${$value.text1.toUpperCase()}"
}

Properties:

• field - field path (for example, "text1", "nested.field", "array.0.item")
• value - JEXL expression that will be evaluated and its result set as field value

Expression Examples:

// Static value
{ "type": "set", "field": "status", "value": "\"active\"" }

// Copy value
{ "type": "set", "field": "text2", "value": "${$value.text1}" }

// Transform value
{ "type": "set", "field": "upper", "value": "${$value.text1.toUpperCase()}" }

// Conditional expression
{ "type": "set", "field": "label", "value": "${$value.active ? 'Active' : 'Inactive'}" }

// Complex calculation
{ "type": "set", "field": "total", "value": "${$value.quantity * $value.price}" }

3. COPY - Copy Value

Copies value from one field to another (including deep clone for objects/arrays):

{
  "type": "copy",
  "from": "sourceField",
  "to": "targetField"
}

Properties:

• from - source field path
• to - target field path

Note: Copying creates a deep clone, so modifying the copied value does not affect the original.

4. SCRIPT - Execute Server-Side Script

Executes a server-side script with success/error action handling:

{
  "type": "script",
  "scriptCode": "notify_user_status_change",
  "scriptData": {
    "userId": "${$value.userId}",
    "status": "${$value.status}"
  },
  "hideScriptError": false,
  "successActions": [
    {
      "action": "SHOW_NOTIFICATION",
      "actionData": { "message": "Status updated" }
    }
  ],
  "errorActions": [
    {
      "action": "SHOW_ERROR",
      "actionData": { "message": "Update failed" }
    }
  ]
}

Properties:

Property	Required	Type	Description
scriptCode	Yes	string	Script code to execute
scriptData	No	string	JEXL expression for script payload (evaluated before execution)
hideScriptError	No	boolean	Whether to hide script errors from user (default: false)
successActions	No	StoreAction[]	NgRx store actions to dispatch on successful script completion
errorActions	No	StoreAction[]	NgRx store actions to dispatch on script error
successDo	No	EffectAction[]	Effect actions to execute on success, with $response available in expressions
errorDo	No	EffectAction[]	Effect actions to execute on error, with $response available in expressions

Important:

• Script executes asynchronously and does not block the effects pipeline
• Script action always returns true immediately (does not wait for script completion)
• Script results do not trigger additional effect iterations
• Success/error actions are handled automatically by FormActionsService

successDo / errorDo

successDo and errorDo allow you to execute effect actions (SET, CLEAR, COPY) after a script completes, with access to the script response via the $response variable. Unlike successActions/errorActions (which dispatch NgRx store actions), successDo/errorDo work directly with form field values.

{
  "type": "script",
  "scriptCode": "calculate_price",
  "scriptData": { "productId": "${$value.productId}" },
  "successDo": [
    { "type": "set", "field": "price", "value": "${$response.calculatedPrice}" },
    { "type": "set", "field": "discount", "value": "${$response.discount}" },
    { "type": "clear", "field": "errorMessage" }
  ],
  "errorDo": [
    { "type": "clear", "field": "price" },
    { "type": "set", "field": "errorMessage", "value": "${$response.message}" }
  ]
}

The $response variable:

• Contains the parsed response.data from the script API response
• Available in expressions within successDo / errorDo actions (specifically in the value property of SET actions)
• All standard expression variables ($value, $context, $config, ...) remain available alongside $response

Expression examples:

${$response}                        // entire response data
${$response.price}                  // nested property
${$response.items[0].name}      // optional chaining

Supported action types in successDo / errorDo:

Type	Supported	Note
set	Yes	$response available in the value expression
clear	Yes	Works the same as in regular do
copy	Yes	Works the same as in regular do
script	No	Nested SCRIPT actions are blocked to prevent recursion

Execution order:

1. Script is called via API
2. successActions / errorActions (StoreAction[]) are dispatched as NgRx actions
3. successDo / errorDo (EffectAction[]) are executed with $response in the expression context

Combining with existing properties:

successDo/errorDo and successActions/errorActions can be used together:

{
  "type": "script",
  "scriptCode": "validate_data",
  "successActions": [
    { "action": "SHOW_TOAST", "actionData": { "severity": "success" } }
  ],
  "successDo": [
    { "type": "set", "field": "validated", "value": "${true}" }
  ]
}

Expressions

All expressions in effects (listen, when, do values, etc.) are standard JEXL expressions with the same evaluation context available as in other form scripting scenarios. See Frontend Scripting with JEXL for the full reference of available variables, functions, and transforms.

Complete Examples

Example 1: Auto-clear field when checkbox changes

{
  "effects": [
    {
      "id": "clear-text-when-disabled",
      "listen": ["${$value.enableText}"],
      "when": "${$value.enableText == false}",
      "do": [
        {
          "type": "clear",
          "field": "textField",
          "mode": "unset"
        }
      ]
    }
  ]
}

Example 2: Synchronize fullName when first/last name changes

{
  "effects": [
    {
      "id": "update-fullname",
      "listen": ["${$value.firstName}", "${$value.lastName}"],
      "do": [
        {
          "type": "set",
          "field": "fullName",
          "value": "${($value.firstName || '') + ' ' + ($value.lastName || '')}"
        }
      ]
    }
  ]
}

Example 3: Conditional address copying

{
  "effects": [
    {
      "id": "copy-billing-address",
      "listen": ["${$value.sameAsShipping}"],
      "when": "${$value.sameAsShipping == true}",
      "do": [
        {
          "type": "copy",
          "from": "shippingAddress",
          "to": "billingAddress"
        }
      ]
    },
    {
      "id": "clear-billing-when-different",
      "listen": ["${$value.sameAsShipping}"],
      "when": "${$value.sameAsShipping == false}",
      "do": [
        {
          "type": "clear",
          "field": "billingAddress",
          "mode": "empty"
        }
      ]
    }
  ]
}

Example 4: Execute script on status change

{
  "effects": [
    {
      "id": "notify-status-change",
      "listen": ["${$value.status}"],
      "when": "${$value.status == 'completed'}",
      "do": [
        {
          "type": "script",
          "scriptCode": "send_notification",
          "scriptData": {
            "userId": "${$value.userId}",
            "oldStatus": "${$context.previousStatus}",
            "newStatus": "${$value.status}"
          },
          "successActions": [
            {
              "action": "SHOW_NOTIFICATION",
              "actionData": { "message": "Notification sent" }
            }
          ],
          "errorActions": [
            {
              "action": "SHOW_ERROR",
              "actionData": { "message": "Failed to send notification" }
            }
          ]
        }
      ]
    }
  ]
}

Example 4b: Script with successDo - update form fields from script response

{
  "effects": [
    {
      "id": "calculate-price-from-product",
      "listen": ["${$value.productId}"],
      "when": "${$value.productId != null}",
      "do": [
        {
          "type": "script",
          "scriptCode": "calculate_price",
          "scriptData": { "productId": "${$value.productId}" },
          "successDo": [
            { "type": "set", "field": "price", "value": "${$response.calculatedPrice}" },
            { "type": "set", "field": "discount", "value": "${$response.discount}" },
            { "type": "clear", "field": "errorMessage" }
          ],
          "errorDo": [
            { "type": "clear", "field": "price" },
            { "type": "set", "field": "errorMessage", "value": "${$response.message}" }
          ],
          "successActions": [
            { "action": "[Core] ShowMessage", "actionData": { "text": "Price calculated" } }
          ]
        }
      ]
    }
  ]
}

Example 5: Complex calculation with multiple fields

{
  "effects": [
    {
      "id": "calculate-total",
      "listen": ["${$value.quantity}", "${$value.price}", "${$value.taxRate}"],
      "do": [
        {
          "type": "set",
          "field": "subtotal",
          "value": "${($value.quantity || 0) * ($value.price || 0)}"
        },
        {
          "type": "set",
          "field": "tax",
          "value": "${(($value.quantity || 0) * ($value.price || 0)) * (($value.taxRate || 0) / 100)}"
        },
        {
          "type": "set",
          "field": "total",
          "value": "${(($value.quantity || 0) * ($value.price || 0)) * (1 + (($value.taxRate || 0) / 100))}"
        }
      ]
    }
  ]
}

Example 6: Load data from datasource

{
  "effects": [
    {
      "id": "load-user-details",
      "listen": ["${$value.userId}"],
      "do": [
        {
          "type": "set",
          "field": "userName",
          "value": "${evalScriptByCode('GetUserName')}"
        }
      ]
    }
  ]
}

Advanced Features

Cycle Protection

The effects engine includes automatic protection against infinite cycles:

• Max depth: 10 iterations
• Warning: Console warning after 3rd iteration
• Field change tracking: Tracks how many times each field has changed
• Execution path logging: Logs execution path for debugging

Examples of effects that cause cycles:

1. Self-loop — the simplest case, an effect listens to the same field it writes to:

{
  "listen": ["${$value.text}"],
  "id": "self-loop",
  "do": [{ "type": "set", "field": "text", "value": "${$value.text + '1'}" }]
}

text changes → effect fires → changes text → effect fires → ...

2. Ping-pong — two effects that write to each other's listened field:

[
  {
    "listen": ["${$value.a}"],
    "id": "a-to-b",
    "do": [{ "type": "set", "field": "b", "value": "${$value.a + 'x'}" }]
  },
  {
    "listen": ["${$value.b}"],
    "id": "b-to-a",
    "do": [{ "type": "set", "field": "a", "value": "${$value.b + 'y'}" }]
  }
]

a changes → sets b → sets a → sets b → ...

3. Chain cycle (A → B → C → A) — a longer chain that eventually loops back:

[
  {
    "listen": ["${$value.x}"],
    "id": "x-to-y",
    "do": [{ "type": "set", "field": "y", "value": "${$value.x}" }]
  },
  {
    "listen": ["${$value.y}"],
    "id": "y-to-z",
    "do": [{ "type": "set", "field": "z", "value": "${$value.y}" }]
  },
  {
    "listen": ["${$value.z}"],
    "id": "z-to-x",
    "do": [{ "type": "set", "field": "x", "value": "${$value.z + '!'}" }]
  }
]

Best Practices

1. Use meaningful IDs

{
  "id": "clear-shipping-when-disabled",  // Good
  "id": "effect1"                        // Bad
}

2. Be explicit with conditions

// Good - explicit condition
"when": "${$value.checkbox == true}"

// Bad - implicit type coercion can cause issues
"when": "${$value.checkbox}"

3. Use optional chaining for safe access

"value": "${$value.user.address.street || 'N/A'}"  // Good
"value": "${$value.user.address.street}"             // Can crash

4. Prefer COPY over SET for objects

// Good - deep clone
{ "type": "copy", "from": "sourceObject", "to": "targetObject" }

// Worse - shared reference
{ "type": "set", "field": "targetObject", "value": "${$value.sourceObject}" }

5. Choose the right clear mode

// Reset to schema default value immediately:
{ "type": "clear", "field": "myField", "mode": "reset" }  // Re-applies default now

// Clear and allow default to be re-applied later (if default expression changes):
{ "type": "clear", "field": "myField", "mode": "unset" }  // Marks pristine

// Just clear the value (blocks defaults):
{ "type": "clear", "field": "myField", "mode": "empty" }  // Sets null/[]/{}

6. Script actions - async pattern

// Script actions are asynchronous - do not block pipeline
{
  "type": "script",
  "scriptCode": "long_running_operation",
  "hideScriptError": false,  // Do not hide errors during debugging
  "successActions": [
    // NgRx store actions (notifications, toasts, etc.)
  ],
  "successDo": [
    // Effect actions with $response (set/clear/copy form fields)
  ],
  "errorActions": [
    // Always define error handling
  ],
  "errorDo": [
    // Clear or reset form fields on error
  ]
}

Tip: Use successDo/errorDo when you need to update form field values based on the script response. Use successActions/errorActions for UI feedback (data reload, notifications, toasts, navigation).

Debugging

Console Logging

Effects log to the console:

[FluentEffects] Max depth reached - stopped due to depth limit
[FluentEffects] Execution depth warning - warning at 3rd iteration
[FluentEffects] Control not found - field not found
[FluentEffects] Error evaluating expression - expression error
[FluentEffects] Script action executed successfully - script succeeded
[FluentEffects] Script action failed - script failed

Execution Path

For debugging cycles, check the execution path in the error message:

{
  depth: 10,
  executionPath: ['effect-1', 'effect-2', 'effect-1', 'effect-2', ...]
}

When to use effects vs computed attributes

Use Case	Solution
Calculated value (read-only)	Computed attribute
Set value on change	Effect with SET action
Side effect (script, clear)	Effect
Synchronous transformation	Computed attribute
Asynchronous operation	Effect with SCRIPT action

Common Issues

Cycles

Problem: Effect A changes field B, effect B changes field A
Solution: Use when condition or combine into single effect

Field Not Found

Problem: "Control not found for set action"
Solution: Check field path - use dot notation for nested fields

Expression Does Not Evaluate Correctly

Problem: Value is not set or is undefined Solution: Check expression syntax and console for errors

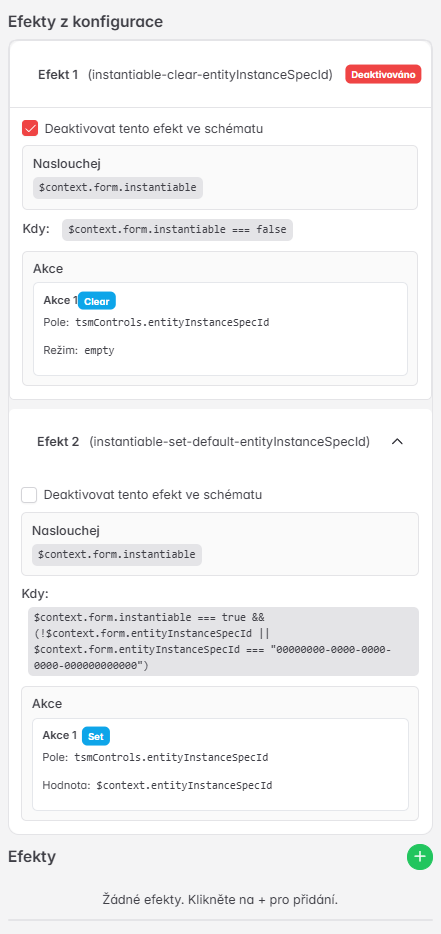

Configuration Effects (Read-Only)

Configuration effects are predefined automatic actions defined in the plugin code for a given entity type (e.g., EntityCatalogSpecification). They appear in the Form Designer under the "Configuration Effects" section as read-only entries.

Unlike the user-defined effects described above, configuration effects:

• Cannot be edited — they are defined by the developer in plugin code
• Can only be deactivated (per form) by checking the checkbox in the read-only section
• Are automatically applied to all forms of the given entity type

Each configuration effect uses the same structure as a regular effect (listen, when, do) and supports the same action types and expression context.

Example: Automatic control of the entityInstanceSpecId field

The following two configuration effects work together — the first clears the field when it is not needed, the second sets a default value when it is needed:

Effect 1 — Clear on non-instantiable specification

• ID: instantiable-clear-entityInstanceSpecId
• Listen: $context.form.instantiable (the "Instantiable" checkbox)
• When: $context.form.instantiable === false
• Action: Clear tsmControls.entityInstanceSpecId (mode: empty)

Effect 2 — Set default instance template

• ID: instantiable-set-default-entityInstanceSpecId
• Listen: $context.form.instantiable
• When: $context.form.instantiable === true and entityInstanceSpecId is empty (blank or contains an empty UUID)
• Action: Set tsmControls.entityInstanceSpecId to $context.entityInstanceSpecId (default instance template from context)

How both effects cooperate:

User checks "Instantiable" (instantiable = true)
  └─ Effect 2 fires → sets the default instance template

User unchecks "Instantiable" (instantiable = false)
  └─ Effect 1 fires → clears the instance template

User checks "Instantiable" but the template is already filled in
  └─ Effect 2 does NOT fire (the "is empty" condition is not met)
  └─ The user's existing selection is preserved

Deactivating a configuration effect

If a specific configuration effect should not run on a particular form:

1. Open the form in the Form Designer
2. Go to the Effects tab
3. In the "Configuration Effects" section, expand the desired effect
4. Check "Deactivate this effect in schema"

A deactivated effect is displayed with an orange "Deactivated" badge and will not execute at form runtime.
